Version: 1.0.0
Release Date: 15th March, 2017
Licence: GPLv2


GPLv2 GitHub release MELPA MELPA Stable

This project adds a new major mode to GNU Emacs for editing BlitzMax source files. It supports keyword highlighting, keyword capitalization, and automatic indentation.

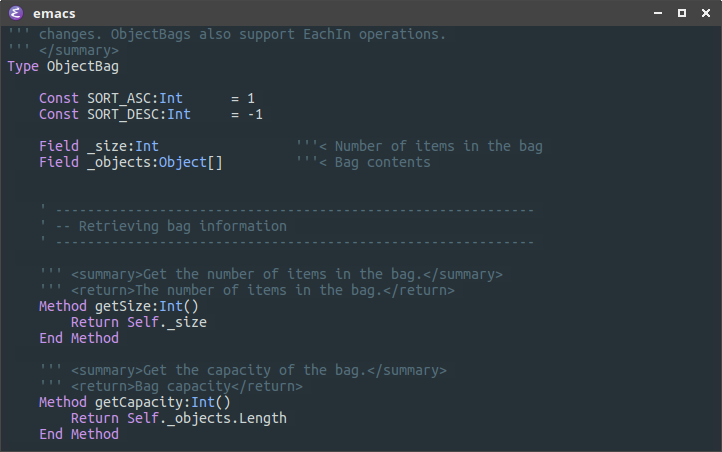

blitzmax-mode in action

There is also some basic support for keyword pair insertion; for example, typing Function test() and hitting <enter> will automatically insert End Function and place the cursor in the correct position. This feature can be enabled by setting blitzmax-mode-complete-pairs-p to t.


It is recommended to install this package directly from MELPA or via el-get. The package is listed in Melpa as blitzmax-mode.

To manually install this extension:

  1. Download the source code and put it somewhere Emacs can find it (probably ~/.emacs.d/).
  2. Add that directory to your load-path if it's not yet there: (add-to-list 'load-path "/path/to/blitzmax-mode")
  3. Require the mode: (require 'blitzmax-mode)

Once everything is loaded, blitzmax-mode can be enabled for a buffer by running M-x blitzmax-mode. The mode also associates itself with .bmx files, so they will automatically switch to blitzmax-mode when enabled.

Configuration via use-package

The following configuration code will enable blitzmax-mode for .bmx files.

(use-package blitzmax-mode
  :mode "\\.bmx\\'"

Configuration Options

blitzmax-mode provides the following configuration options:

  • blitzmax-mode-indent - The number of spaces to indent by. By default blitzmax-mode indents by 4 spaces which is converted to a single tab.

  • blitzmax-mode-capitalize-keywords-p - Disable automatic capitalization of keywords by setting this to nil. t by default.

  • blitzmax-mode-smart-indent-p - Disable smart indentation by setting this to nil. t by default.

  • blitzmax-mode-complete-pairs-p - Enable automatic insertion of matching keyword pairs - such as "End Method" - by setting this to t. nil by default.

  • blitzmax-mode-compiler-pathname - Full pathname to the BlitzMax compiler bmk. "bmk" by default.

Running the current buffer using quickrun

quickrun.el is an extension for compiling and executing the current buffer.

To enable quickrun support, add the following to your Emacs initialization file:

(with-eval-after-load 'quickrun

To bind quickrun to a key press (C-c C-c in this example), add the following to init.el (or wherever your Emacs config resides):

(eval-after-load "blitzmax-mode"
  '(define-key blitzmax-mode-map (kbd "C-c C-c") 'quickrun))

To add quickrun support to blitzmax-mode via use-package, use the following:

(use-package blitzmax-mode
  :mode "\\.bmx\\'"
  (("C-c C-c" . quickrun))

When called, quickrun will compile and execute the current buffer with debug and threading enabled. Once the process has finished running the executable file will be deleted.

Compiling Projects with Projectile

Projectile is a great Emacs package for organizing and navigating large projects. It can be configured to build a BlitzMax application by setting projectile-project-compilation-cmd in the project's .dir-locals.el file.

For example, the following would go in .dir-locals.el in the projects folder. It would compile the contents of src/my_app.bmx in release + threaded mode and save the executable as my_app:

((nil . ((projectile-project-compilation-cmd . "bmk makeapp -r -h -o my_app src/my_app.bmx"))))

The current project can then be compiled by running projectile-compile-project (bound to C-c p c by default).

Current Features

  • Basic syntax highlighting
  • Automatic indentation
  • Capitalizes keywords automatically
  • Quickrun support
  • Auto-completion

Planned Features

  • Compile current buffer
  • Integration with bmk
  • Integration with blam


This file is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2, or (at your option) any later version.

This file is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with GNU Emacs; see the file COPYING. If not, write to the Free Software Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA.
